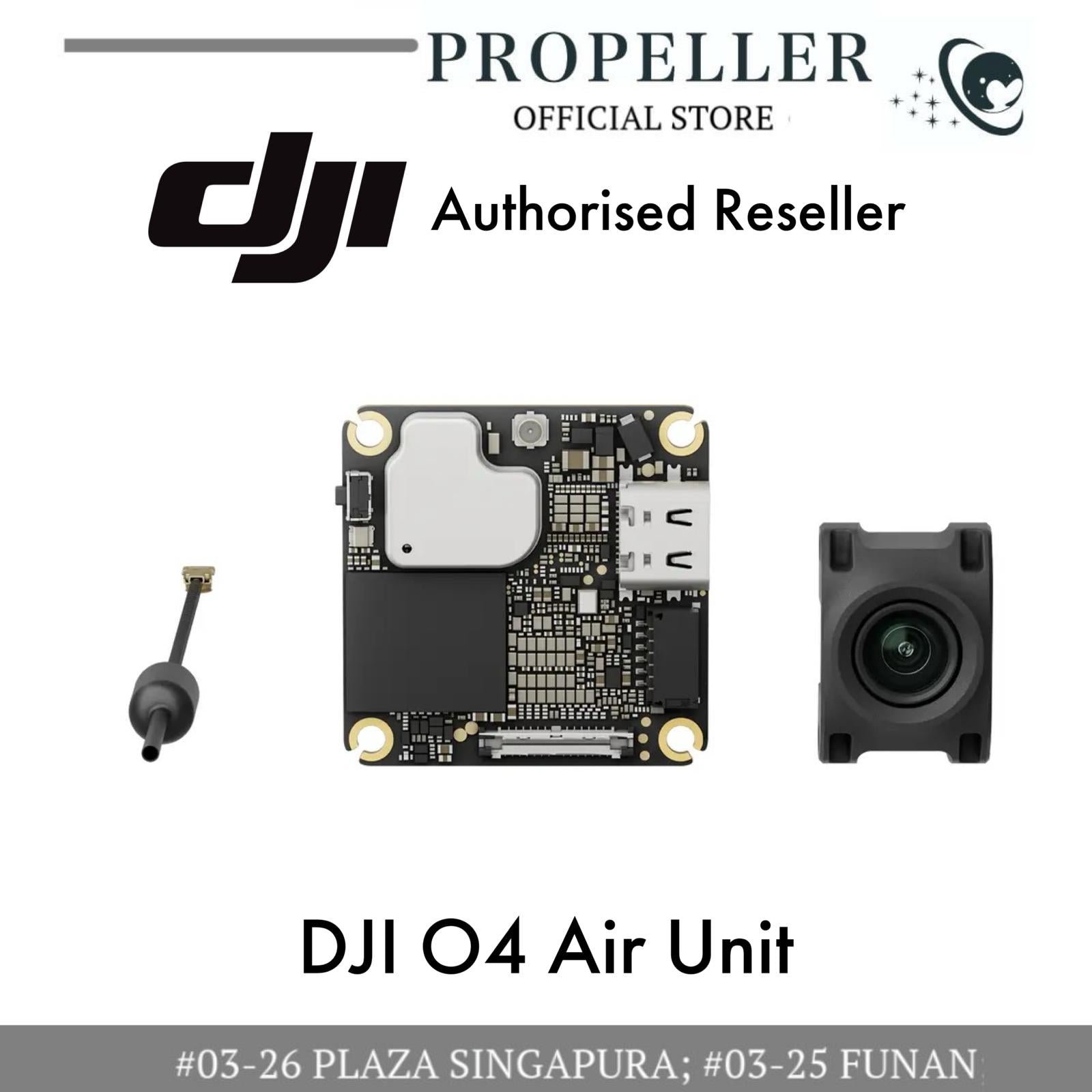

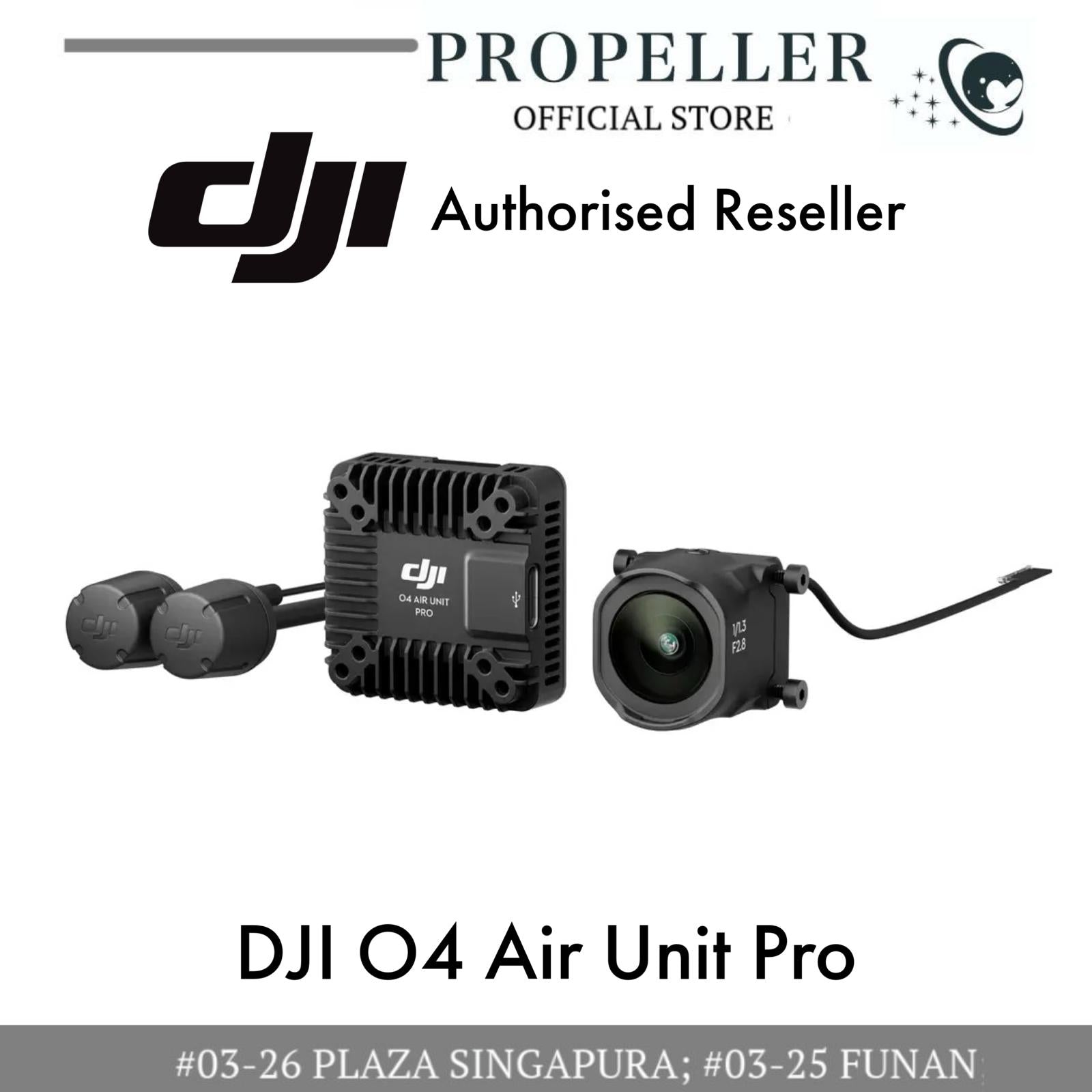

DJI O4 Air Unit Pro
DJI O4 Air Unit Pro
Couldn't load pickup availability
The DJI O4 Air Unit Series marks a new leap in video transmission performance, delivering a cutting-edge digital video transmission solution with higher resolution, lower latency, and extended range. Weighing just 8.2 grams, the DJI O4 Air Unit features a 1/2-inch image sensor capable of capturing 4K/60fps video, offering both portability and versatility. Taking it a step further, the DJI O4 Air Unit Pro boasts an enhanced imaging capability with a 1/1.3-inch image sensor, capable of recording 4K/120fps video. It also supports impressive features such as 10-bit D-Log M color mode and a 155° ultra-wide FOV, [1] capturing the vast expanse of the world in unparalleled detail.
The DJI O4 Air Unit Series is equipped with the DJI O4 video transmission system, achieving ultra-low latency for more responsive controls. Paired with the dual-antenna design of the DJI O4 Air Unit Pro, the max transmission distance can reach up to 15 kilometers, [2] and the system can automatically select the most stable frequency. Whether soaring over mountains and rivers or navigating indoor spaces, you can perform confidently and with precision.
H.265 Video Transmission
1080p/100fps
Max Video Transmission Range
15 km [2]
Ultra-Low-Latency Video Transmission
15 ms [3]
Max Video Transmission Bitrate
60 Mbps [4]
Camera
Image Sensor
1/1.3-inch CMOS Sensor
Lens
FOV: 155°
The equivalent focal length: 12 mm
Aperture: f/2.8
Focus: 0.6 m to ∞
ISO Range
100-25600 (Auto)
100-25600 (Manual)
Video Resolution
4K (4:3): 3840×2880@30/48/50/60fps
4K (16:9): 3840×2160@30/48/50/60/100/120fps
2.7K (4:3): 2888×2016@30/48/50/60fps
2.7K (16:9): 2688×1512@30/48/50/60/100/120fps
1080p (4:3): 1440×1080@30/48/50/60/100/120fps
1080p (16:9): 1920×1080@30/48/50/60/100/120fps
Video Format
MP4
Max Video Bitrate:
130 Mbps
Color Mode
Normal Mode
D-Log M
Camera FOV
Standard
Wide-Angle
Ultra Wide-Angle
EIS
RockSteady 3.0+
Stabilization function off (supports Gyroflow)
When RockSteady is enabled, the shooting angle only supports standard.
Video Transmission
Operating Frequency
5.170-5.250 GHz
5.725-5.850 GHz
Operating frequency allowed varies among countries and regions. Please refer to local laws and regulations for more information.
Transmitter Power (EIRP)
5.1 GHz:
<23 dBm (CE)
5.8 GHz:
<33 dBm (FCC)
<14 dBm (CE)
< 30 dBm (SRRC)
Lowest Latency
With DJI Goggles 3 and pick racing mode:
With 1080p/100fps video transmission quality, the latency is as low as 15 ms.
With DJI Goggles N3 and pick racing mode:
With 1080p/100fps video transmission quality, the latency is as low as 19 ms.
With DJI Goggles 2 or Goggles Integra:
With 1080p/100fps video transmission quality, the video transmission latency is less than 30 ms.
Compatibility
Supported Flight Controller System
Betaflight 4.3.0 and higher versions
Supported DJI Goggles and Remote Controllers
DJI Goggles 3 + DJI FPV Remote Controller 3
DJI Goggles N3 + DJI FPV Remote Controller 3
DJI Goggles 2/ Goggles Integra + DJI FPV Remote Controller 2
