DJI Power 1000 Mini - Mini Power Station | 1008 Wh Capacity, 7 Output Ports | Car Battery Recharge| 80% Charge in 58 min

General

• Model

• DYM1000M

• Cell Chemistry

• LFP (lithium ferrophosphate)

• Energy

• 1008 Wh (typical)

• Cycle Life

• Maintains over 80% capacity after 4000 cycles.

  ^{One cycle is defined as a complete charge and discharge. Tested in a 25° C (77° F) laboratory environment, with DJI Power 1000 Mini recharged in Standard Mode and discharged at 400W output power to external devices.}

• Net Weight

• Approx. 11.5 kg

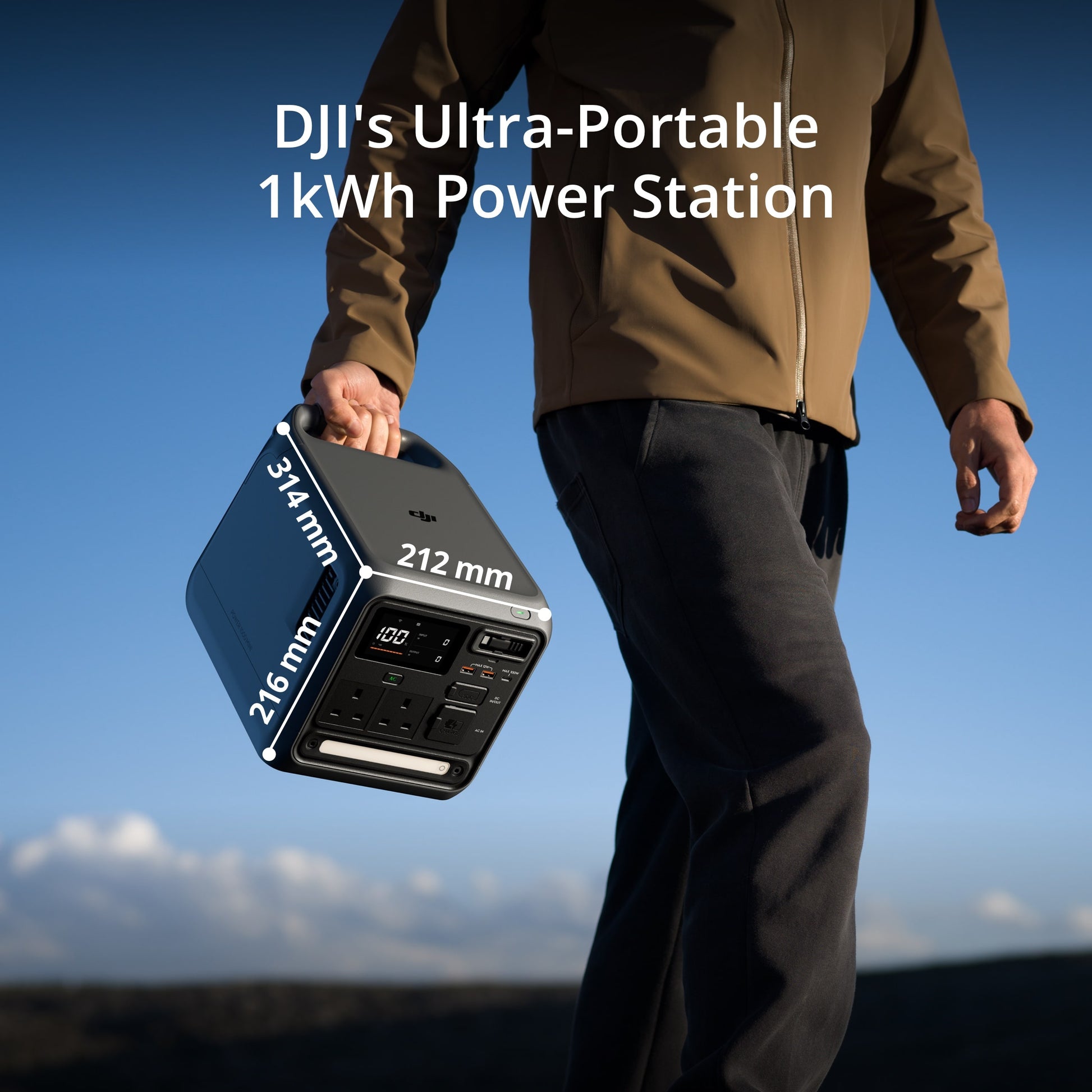

• Dimensions

• 314×212×216 mm (L×W×H)

• Number of Ports

• AC output port × 2 (For regions using CN, EU, AU and UK standards)*
  AC output port × 4 (For regions using US and JP standards)*

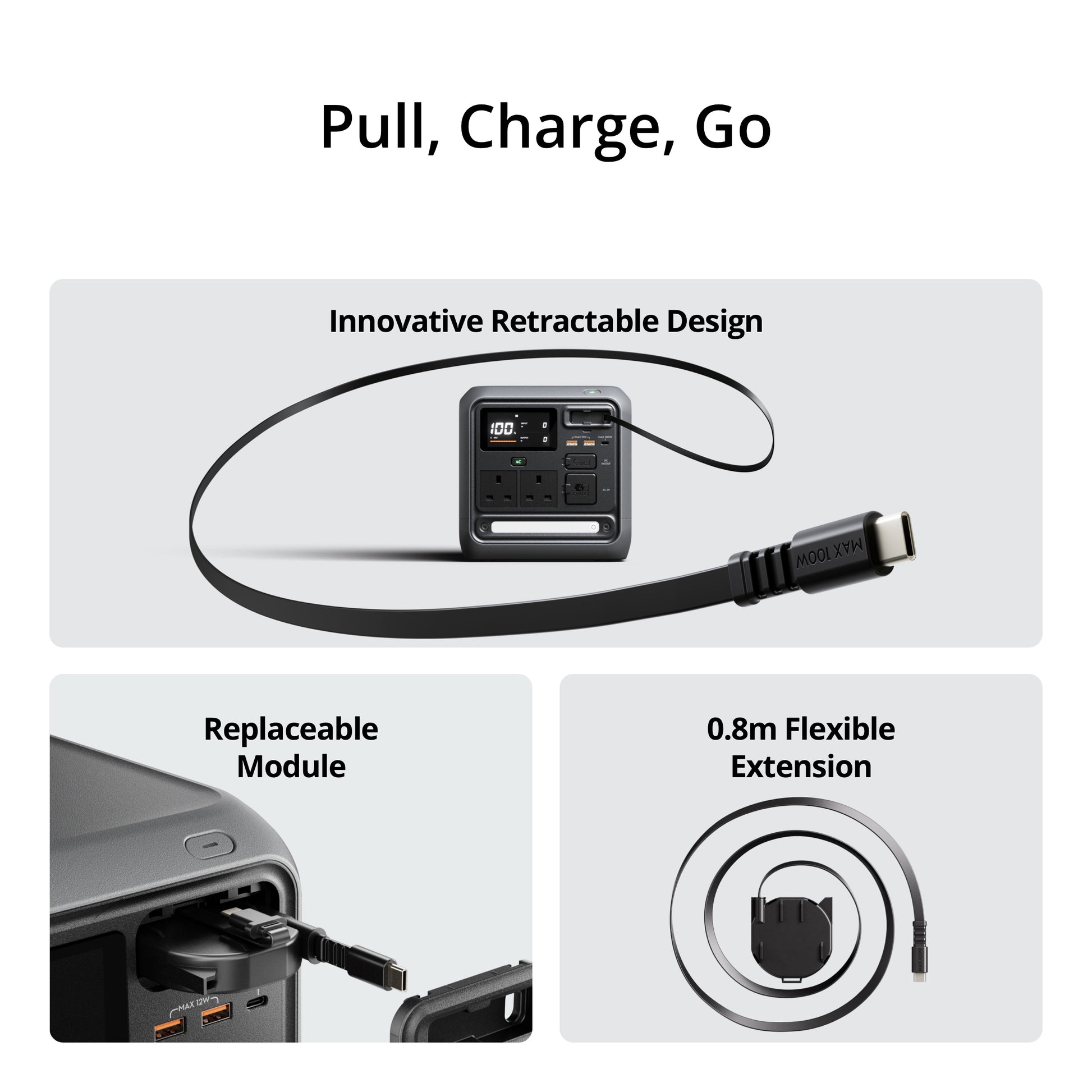

  USB-C × 1
  USB-C Retractable Cable × 1
  USB-A × 2
  SDC × 1
  AC Input × 1

  ^{* Models for regions using US and JP standards feature four AC output ports. Due to differing port sizes, models for other regions include only two.}

• Max Operating Altitude

• 5000 m

Output Specifications

• AC Output

• Low voltage:
  AC 100-120 V, 50/60 Hz, max current: 10 A, max 1000 W (continuous at 800 W)
  AC 100-120 V, max current: 14.4 A, max 1440 W (Bypass mode)

  High voltage:
  AC 220-240 V, 50/60 Hz, max current: 4.5 A, max 1000 W (continuous at 800 W)
  AC 220-240 V, max current: 10 A, max 2200 W (Bypass mode)

  ^{AC output data varies by country and region.}

• USB-A Output

• 5 V, 2.4 A
  Max output power per channel: 12 W

• USB-C Output

• 5 V, 5 A
  9 V, 5 A
  12 V, 5 A
  15 V, 5 A
  20 V, 5 A
  Max output power per channel: 100 W*

  ^{* The USB-C port supports a max output power of 100 W. When charging devices concurrently via the retractable cable and USB-C port, the total output power is 150 W, with the retractable cable providing up to 100 W and the USB-C port up to 50 W.}

• SDC Output

• SDC: 9-28 V, max 300 W

Input Specifications

• AC Input

• Low voltage:
  AC 100-120 V, 50/60 Hz, max current: 10 A, max 1000 W (continuous at 800 W)
  AC 100-120 V, max current: 14.4 A, max 1440 W (Bypass mode)

  High voltage:
  AC 220-240 V, 50/60 Hz, max current: 4.5 A, max 1000 W (continuous at 800 W)
  AC 220-240 V, max current: 10 A, max 2200 W (Bypass mode)

  ^{AC input data varies by country and region.}

• USB-C Input

• Max charging power: 100 W

• SDC Input

• SDC: 9-28 V, max 400 W

Operating Temperature

• Power Supply Temperature

• -10° to 45° C (14° to 113° F)

• Recharging Temperature

• -10° to 45° C (14° to 113° F)

• Storage Temperature

• -10° to 45° C (14° to 113° F)

Wi-Fi and Bluetooth

• Operating Frequency and Transmitter Power (EIRP)

• Wi-Fi (802.11 b/g/n):
  2.4000-2.4835 GHz: < 20 dBm (CE/SRRC/MIC)

  Bluetooth 5.0:
  2.4000-2.4835 GHz: < 7 dBm

  ^{The supported operating frequency bands and their corresponding availability vary by country/region. For details, please refer to local laws and regulations.}
